French cars (for use with ELS27, OBDLink MX+/EX, vLinker MC/FD/FS)

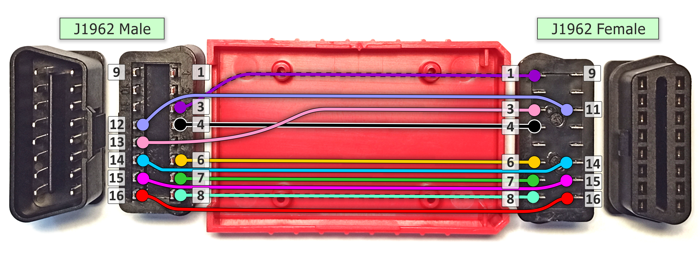

| Contacts (Male) | Allocation | Contacts (Female) |
|---|---|---|
7 | К-line | 7 |
15 | L-line | 15 |
6 | HS CAN-High | 6 |
14 | HS CAN-Low | 14 |
13 | Renault MM CAN-High | 3 |
12 | Renault MM CAN-Low | 11 |
3 | PSA Diag CAN-High | 1 (ELS27 v4) |
8 | PSA Diag CAN-Low | 8 (ELS27 v4) |
4 | Chassis ground | 4 |
16 | Battery positive voltage | 16 |
Modern Renault vehicles have a second (multimedia/MM) CAN bus on pins 13-12 (CAN_H/CAN_L).
In modern PSA (Peugeot/Citroen) cars, a non-standard CAN bus is used for diagnostics, it is located on pins 3-8 (CAN_H/CAN_L).
Also note that if you are using a version of the adaptor that routes CAN lines, then you must make the appropriate settings in the config.ini file (DAP4CS/App/config.ini).
