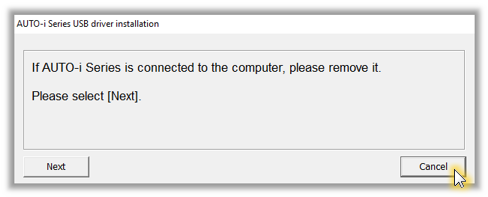

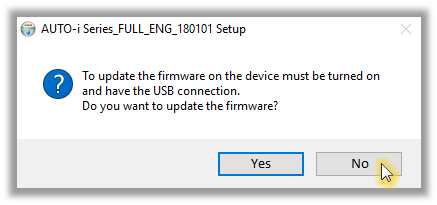

• During Auto-i install skip driver installation and firmware update.



  • After install go to the Auto-i options dialog. Select 'CARMAN VCI' or 'i100' device type and USB connection method, then click 'Save' (i100 mode used since version 2232).

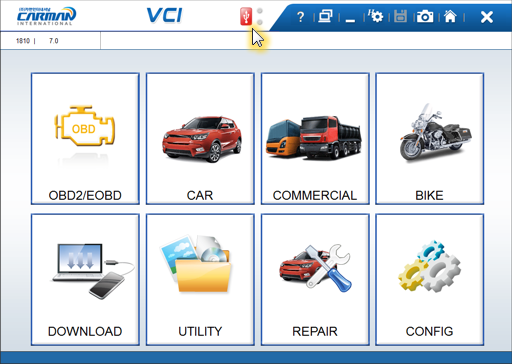

  • Run DAP4CS, 'Host' indicator should light on if DAP4CS has succefully plugged to the Auto-i application.


  • FTDI K-line adapter type is selected in DAP4CS by default after installation, so if K+CAN Commander 1.4 or other FT232 based K-line adapter currently connected to USB port of your computer, DAP4CS should connect to it, and If the connection was succefull, 'Adapter connected' icon should appear in the Auto-i application. Now you may diagnose cars.

  • DAP4CS minimum system requirements: Windows XP SP3 32bit,
    RAM 1Gb, over 1GHz x86 processor, USB 2.0
  • Recommended: Win7–Win10 32/64bit,
    RAM 2Gb, over 1.4GHz multicore x86-64 processor, USB 2.0/3.0
  • Windows 11 is also supported but not yet recommended as Auto-i and DAP4CS are not yet well tested on this OS.
  • FTDI driver (for K+CAN Commander 1.4, OBDLink SX/EX, vLinker FS, ELM327 on FT232)
    PL2303 driver (for ELS27 v4, ELM327 on PL2303)
