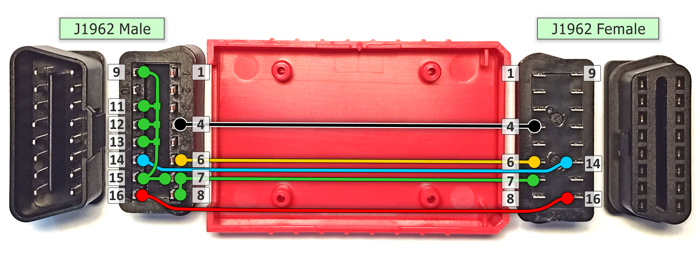

SsangYong from 2007
| Contacts (Male) | Allocation | Contacts (Female) |
|---|---|---|
|
7
8
9
11
12
13
15 | К-line | 7 |
6 | CAN-High | 6 |
14 | CAN-Low | 14 |
4 | Chassis ground | 4 |
16 | Battery positive voltage | 16 |
The ISO9141 standard allows multiple Control Units to be connected to single K-line. Almost all Japanese car manufacturers use this feature and connect several Control Units to single K-line located on pin No. 7 in the J1962 (OBD2) connector. But most Korean automakers connect different Control Units to separate K-lines. However, you can combine individual K-lines into one without violating the ISO9141 standard.
